110KV corraguted aluminum wrapping waterproof power cable

Price:	0.2~158.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU,
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 110KV cable

Production Capacity: 50000 meters per week

Delivery Date: 10days

Type: Medium Voltage

Jacket: PVC

Brand Name: aobest

Standard 2: AS/NZS

screen: copper tape

sheath color: red or black

quality warranty: 20years

inspection: any inspection party accept...

Means of Transport: Ocean,Land,Air,

Packing: steel reel

Application: Construction

Insulation Material: XLPE

Conductor Material: Copper

standard1: IEC standard

Standard 3: GOST

insulation color: black

packing: steel drum

certificate: ISO9001

1. high voltage cable 110KV
2. 800sqmm size
3. Super quality provided
4. export globle market
5. best price in China

110KV corraguted aluminum wrapping waterproof power cable

64&110KV High voltage POWERCABLE

Suitable for the places with a higher underground water level and to beusedunderground, in the tunnels or pipes. Such cables bear a bigger pullingforceand pressure.

Rated voltage 64/110KV XLPE copper core and PE insulated wrinkledaluminumwrapper waterproof layer PE(or PVC) sheathed power cable.

YJLW02 (YJLW03) 1×240mm²~1×1200m m²

Type: YJLW02or YJLW03 Specifications:1×240mm²~1×1200mm²

Detailed Description

Cross-linked polyethyleneinsulated power cable not only has excellent electric and mechanical properties,but also has powerful resistance against chemical corrosion, heat-aging andenvironmental stress. Its structure is simple and using conveniently, also canbe laid with no restriction of different level. The long term operatingtemperature is 90, and itstransmit capacitanceis large.

Our company can produce bothflame retardant and non-flame retardant series of XLPE power cable.. Ourproducts can be produced according to our works specifications which areequivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes aresuperior to standards stated above..

The flame-retardant cablecovers all kinds of low-smoke low-halogen, low-smoke halogen free and threeclasses of A, B, C. We can design and manufacture special XLPE cable accordingto the other standards require by the customers, such as heavy section cut partconductors, water-resistant, defend termites, defend mouse, and soon..
110KV XLPE Insulated Power Cable

CU Conductor PVC Insulated PVCSheathed Power Cable

1. Theapplications: Rated voltage (U0/U) 0.6/1KV, 8.7/15KV,26/35kV in transmission& transformation line & for water-proofing purpose .

2. Standards:60502IECISO9001

3. Productfeatures:

1) No necessary toheat up in advance while installing above 0^oC.

2) Max. continuousnormal operating Temperature: 90^oC (PVC Sheathed cable).

3) Max. Permissibletemperature at short circuit (5s. at longest): 250^oC.

4) Permissiblebending radius:

Single core:≥20(d+D)±5%.

Three-core:≥15(d+D)±5%(D is the actualoverall diameter of cable, and d is the actual overall diameter ofconductor).

Conductorsectionmm²	Conductordiametermm	Insulatorthicknessmm	Aluminumwrappermm	Sheaththicknessmm	Cablesouterdiametermm	kg/km Cablesweight
Conductorsectionmm²	Conductordiametermm	Insulatorthicknessmm	Aluminumwrappermm	Sheaththicknessmm	Cablesouterdiametermm	PVCPVCsheath	PE PEsheath
240	18.4	19.0	2.0	4.5	89.9	8348	7708
300	20.6	18.5	2.0	4.5	91.1	8990	8341
400	23.8	17.5	2.0	4.5	92.3	9731	9073
500	26.6	17.0	2.0	4.5	94.5	10882	10208
630	30.0	16.5	2.0	4.5	96.9	12352	11660
800	34.0	16.0	2.0	4.5	99.9	14168	13454
1000	38.2	16.0	2.0	4.5	105.0	16460	15708
1200	42.6	16.0	2.0	4.5	109.4	18685	17900

Resistance:

Conductor section mm²	(Ω/km) Conductor resistance		Capacitance μF/km	Carrier current capacity A	(KA/3S) Short circuit current
Conductor section mm²	20 20DC	90 90AC	Capacitance μF/km	Carrier current capacity A	Conductor	Metal sheath
240	0.0754	0.0961	0.135	543	20	22
300	0.0601	0.0766	0.146	597	25	22
400	0.0470	0.0599	0.165	657	33	22
500	0.0366	0.0467	0.182	718	41	23
630	0.0283	0.0361	0.201	779	52	24
800	0.0221	0.0282	0.223	837	66	25
1000	0.0176	0.0224	0.246	914	83	26
1200	0.0151	0.0193	0.266	962	99	27

110KV cable:

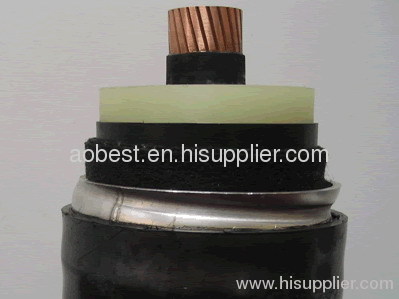

110KV high voltage cable
