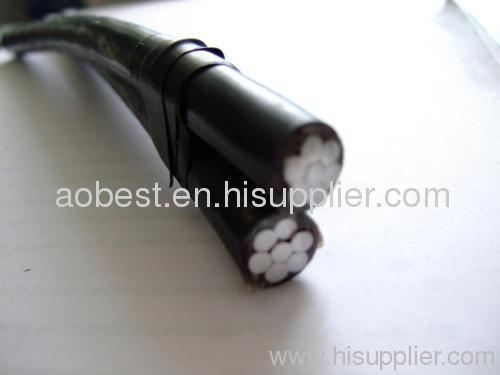

ABC power cable al conductor xlpe insulation power transmission cable

Price:	1.0~152.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: abc cable

Production Capacity: 10000m/week

Delivery Date: within 15days for one conta...

Type: Low Voltage

Conductor Material: Aluminum

conductor: Aluminum

voltage: 600/1000v

cores: two

Means of Transport: Ocean,Land,Air

Packing: wooden drum or as customer ...

Application: Overhead

Insulation Material: XLPE

Brand Name: aobest

insulated: xlpe

origin: China

standard: awg

1. power transmission cable
2. fine insulation
3. high quality raw material
4. timely service

2014 hot selling ABC power cable al conductor xlpe insulation power transmission cable

Aerial bundled cable ABC cable collie twisted cable all cores XLPE insulated, service drop cable ,various sizes, IEC standard, ASTM standard, DIN standard etc. We can manufacture according to customer's requirements

1. Applications

To supply power from the utilitys lines to the consumers weatherhead.For service at 600 volts or less(phase to phase) at a conductor temperature of 75^oC maximum for polyethylene insulation or 90^oC maximum for crosslinked insulation.

2. Construction

Concentric strand or compressed 1350-H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.

3. Standards

ASTM B-230,B-231,B-232 and B-339

ICEA S-76-474

ABC cable
16 mm 2 * 2C	( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70
16 mm 2 * 4C	3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70
25 mm 2 * 2C	( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12
25 mm 2 * 4C	3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12
35 mm 2 * 2C	( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50
35 mm 2 * 4C	3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50
50 mm 2 * 2C	( AL19/1.78+PE O.D.11.7) + AL19/1.78
50 mm 2 * 4C	3*(AL19/1.78+PE O.D.11.7) + AL19/1.78
70 mm 2 * 2C	( AL19/2.12+PE O.D.13.5) + AL19/2.12
70 mm 2 * 4C	3*(AL19/2.12+PE O.D.13.5) + AL19/2.12
95 mm 2 * 2C	( AL19/2.50+PE O.D.15.8) + AL19/2.50
95 mm 2 * 4C	3*(AL19/2.50+PE O.D.15.8) + AL19/2.50
