ASDD cable Aerial cable

Price: 0.12~13.0 USD
Payment Terms: T/T,L/C
Place of Origin: Henan, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ASDD
Packing: reel
Application: Telecommunications
Brand Name: aobest
Number of Conductors: 24fiber
Rated Voltage: 550KV 220KV
quality warranty: 15yesrs
Production Capacity: 5000000meter per week
Delivery Date: 10days
Type: Optical Fiber
Weight: 15
Nominal Outer Diameter: 9.15
Operating Temperature: 200

1.Optical Fiber ADSS cable
2.ADSS S001
3:100% new good quality material
4.lowest factory price
5.fast delivery time

ADSS Cable (All Dielectric Self-supporting Aerial Cable)

Characteristics:
1.the ADSS Cable (All Dielectric Self-supporting Aerial Cable)small cable Dia, light weight, 1,500m span, low attached load on tower.
2.Tension strength is over 90KN.
3.Non-metal structure, good insulation, anti-thunder.
4.Fine production technology, even force for aramid fiber, with superior stress flexibility.
5.anti gun fire.
6.Anti electro-corrosion.
7.Adapt for bad climate.
8.May construct without power cut, a power line failure doesn't influence cable's normal transfer.
9.loose cover GYTA cable core, non-metallic core reinforced.
10.Tension units are elastic modulus aramid fiber.
11.Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤26KV/m.

Details ofADSS Cable (All Dielectric Self-supporting Aerial Cable):
ADSS with grade A sheath (Parts)
Structure drawing
Order Type Model
ADSS-PE 24 M15.5/ A
ADSS-PE48 M17.7 / C
ADSS-PE72 M21.2 / D
Fiber count
24fiber
48fiber
72fiber
Size of tube
φ2.1mm
φ2.6mm
φ3.0mm
Cable diameter
φ13.4mm
φ14.9mm
φ16.4mm
Cable weight
139kg/km
172kg/km
209kg/km
RTS
38.8kN
44.3kN
56.6kN
Linear expansion coefficient
2.2×10-6/℃
2.0×10-6/℃
1.8×10-6/℃
Young's modulus
16.5kN/mm2
17.5kN/mm2
18.6kN/mm2
ADSS with grade B sheath (parts)
Structure drawing
Order Type Model
ADSS-AT 24 M14 / A
ADSS-AT48M15.2 / C
ADSS-AT72 M21.2 / D
Fiber count
24fiber
48fiber
72fiber
Size of tube
φ2.1mm
φ2.6mm
φ3.0mm
Cable diameter
φ13.2mm
φ14.3mm
φ16.3mm
Cable weight
146kg/km
169kg/km
220kg/km
RTS
35kN
37.9kN
52.9kN
Linear expansion coefficient
4.5×10-6/℃
4.8×10-6/℃
3.6×10-6/℃
Young's modulus
15.5kN/mm2
14.9kN/mm2
17.9kN/mm2
ADSS with grade B sheath (parts)
Structure drawing
Order Type Model
ADSS-AT144 M12.3 / D
Fiber count
144fiber
Size of tube
φ3.0mm
Cable diameter
φ20.7mm
Cable weight
344kg/km
RTS
30.8kN
Linear expansion coefficient
3.5×10-6/℃
Young's modulus
6.22kN/mm2
Tags: ADSS cable All-dielectric Self-supporting Optical Cable

for more information, pls email us!

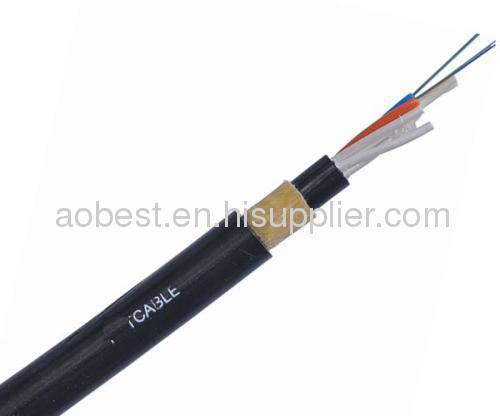

ADSS Cable (All Dielectric Self-supporting Aerial Cable)
