NAYBY NYFGbY NYAFGbY NAYRGbY PVC insulated power cable

Price:	1.0~66.0 USD
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NAYBY NYFGbY NYAFGbY NAYRGb...

Packing: standard wooden drum

Application: Construction

Insulation Material: PVC

Conductor Material: Copper

Color: red/black/blue/yellow/green

voltage: low voltage

Production Capacity: 50000m/week

Delivery Date: 15days for one container

Type: PVC power cable

Jacket: PVC

Brand Name: Aobest

size: 25mm2/35mm2/50mm2/70mm2/95m...

conductor: Aluminum

1. NAYBY cable
2. Voltage: 0.6/1KV
3. DIN/IEC standard
4. Aluminum conductor
5. underground application

0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable

Structure: Aluminum/PVC/DSTA/PVC

Application:

The Aobest 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable can be used for power transmission and distribution in fixed factories for rated alternating voltage of 0.66 kV and 1 kV with frequency of 50 Hz.

And also used for installation in ground (trenches), premises, tunnels, channels, mines (not including in blocks), and outdoors, with cable not subjected to significant tensile force, but if there is a mechanical damage risk during operation.

Aobest NAYBY and NAYRY cables are flame-retardant if single core. Aobest NAYRGbY, and NAYFGbY cables are flame-retardant if bunched.

Technical data

• Temperature range
- flexing -5°C to + 50°C
- stationary -30°C to + 70°C

• Working voltage Uo/U 0,6/1KV

• Test voltage 4KV

• Specific insulation resistance at 70°C min. 10¹⁰ Ω x cm

• Bending radius min:
- for single core15 x Ø
- for multi core 12 x Ø

• Permissible tensile stress with cable grip for Cu- conductor max 30 N/mm²

Dimensions of the 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable type of cables

Size Sq. MM	RT of Insulation MM	Nominal diameter over copper screen MM	Nominal diameter over laid up core MM	RT of Bedding MM	Diameter over bedding MM	Diameter of armour wire MM	Diameter over armour MM	RT of outer sheath MM	Nominal overall diameter MM	Weight KG / KM
16	3.4	14.8	32.0	1.2	35.7	2.0	40.3	2.3	45.4	3700
25	3.4	16.1	34.9	1.3	38.8	2.5	45.3	2.5	51.3	4800
35	3.4	17.3	37.5	1.3	41.4	2.5	47.9	2.5	53.6	5300
50	3.4	18.5	40.1	1.4	44.2	2.5	50.7	2.6	57.7	6000
70	3.4	20.2	43.7	1.4	48.8	2.5	55.3	2.8	62.5	7000
95	3.4	22.3	48.3	1.5	53.6	2.5	61.1	2.9	66.5	8200
120	3.4	23.5	50.9	1.6	56.4	2.5	63.9	3.0	71.5	9400
150	3.4	25.0	54.2	1.6	59.8	2.5	66.3	3.1	74.1	10500
185	3.4	26.8	58.0	1.7	63.8	2.5	70.3	3.2	78.4	12100
240	3.4	29.1	63.0	1.8	69.0	3.15	77.9	3.4	86.4	15400
300	3.4	31.6	68.4	1.9	74.6	3.15	83.6	3.6	92.0	17900

The 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable is our advantage power cable, with first-class research and design team, we can meet the needs fo different application environments, to offer the best quality 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable. With strict QC in our factory, you will satisfied with our cable quality and profesional service.

Welcome your inquiry of the 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable!

Many other PVC/XLPE power cable,rubber cable,ABC overhead cable,bare AAC/AAAC/ACSR conductor, control cable can be produced. More info needed, pls contact me freely.

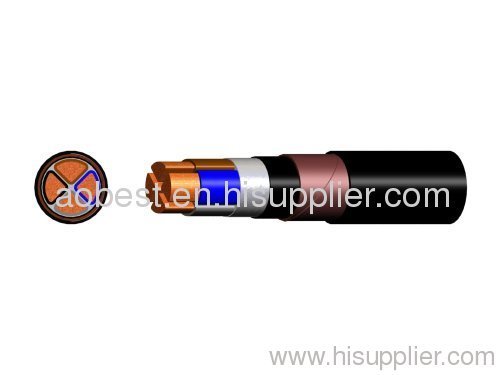

PHOTO of the 0.6/1KV NAYBY NYFGbY NYAFGbY NAYRGbYPVC insulated power cable
