18/30KV power cable 3x50 3x70 3x95 3x240 from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

18/30KV power cable 3x50 3x70 3x95 3x240

Price:	0.2~158.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU,
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 18/30KV cable

Production Capacity: 50000 meters per week

Delivery Date: 10days

Type: Medium Voltage

Jacket: PVC

Brand Name: aobest

Standard 2: AS/NZS

screen: copper wire then copper tap...

sheath color: red or black

quality warranty: 20years

inspection: any inspection party accept...

Means of Transport: Ocean,Land,Air,

Packing: steel reel

Application: Construction

Insulation Material: XLPE

Conductor Material: Copper

standard1: IEC60502

Standard 3: GOST

insulation color: black

packing: steel drum

certificate: ISO9001

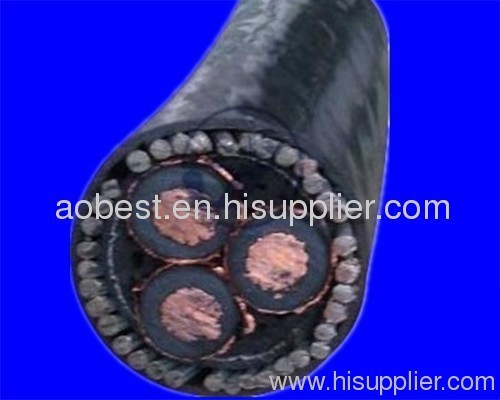

1. 18/30kv copper power cable
2. 3x240mm
3. steel wire armored
4. PVC outsheath
5. fast production and delivery

18/30KV power cable size of 3x50 3x70 3x95 3x120 3x150 3x185 3x240 3x300

XLPE powercable

Al/Cu Conductor XLPE Insulated Thin/Thick steel armored PE Sheathed PowerCable.

Installation: Underground
This series includes:
Copper (aluminum) core, XLPE insulated, steel wirearmoring, PVC sheathed power Cables Copper (aluminum) core, PVC insulated,steel wire armoring, PE sheathed power cables
Rated voltage: 12/20kV
Number of cores: 1,3
Relative manufacturing standards: IEC60505, BS, DINpacking: Wooden drum, steel wooden drum
Size:

Number of cores	×	core cross section [mm2]		Approx. outer ø min.[mm]	Approx. outer ø max.[mm]	Cooper weight [kg/km]	Approx. cable weight [kg/km]
1	×	35	rm/16	27	32	518	1150
1	×	50	rm/16	28	33	662	1300
1	×	70	rm/16	30	35	854	1350
1	×	95	rm/16	31	36	1094	1650
1	×	120	rm/16	33	38	1334	1900
1	×	150	rm/16*	54	39	1622	2150
1	×	150	rm/25	34	39	1723	2250
1	×	185	rm/16*	36	41	1958	2550
1	×	185	rm/25	36	41	2059	2600
1	×	240	rm/16*	39	44	2486	3100
1	×	240	rm/25	39	44	2587	3200
1	×	300	rm/25	41	46	3163	3800
1	×	400	rm/35	44	49	4234	4750
1	×	500	rm/35	47	52	5194	5800
