Photovoltaic (PV) Cable 2KV from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

Price:	0.2~158.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU,
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CU/XLPE

Production Capacity: 50000 meters per week

Delivery Date: 10days

Type: Medium Voltage

Jacket: Others

Brand Name: aobest

Standard 2: AS/NZS

screen: copper wire then copper tap...

sheath color: red or black

quality warranty: 20years

inspection: any inspection party accept...

Means of Transport: Ocean,Land,Air,

Packing: steel reel

Application: Construction

Insulation Material: XLPE

Conductor Material: Copper

standard1: ASTM

Standard 3: GOST

insulation color: black

packing: steel drum

certificate: ISO9001

1. PV cable
2. Photovoltaic cable
3. copper conductor XLPE insulated
4. ASTM standard
5. 2kv
5. 18 to 4/0 AWG size

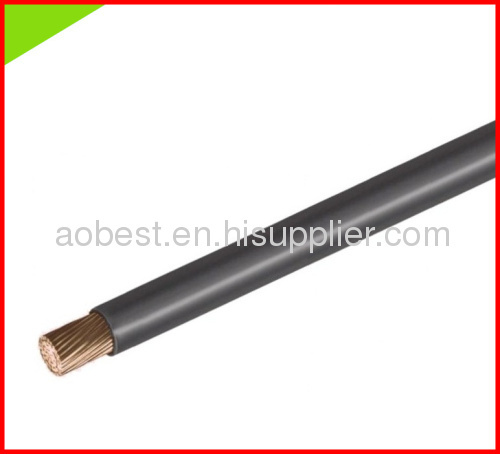

Photovoltaic (PV) Cable CU Conductor XLPE Insulated 600V through 2kV

Application of the Photovoltaic (PV) Cable CU Conductor XLPE Insulated 600V through 2kV:

600V
For use in grounded and ungrounded Photovoltaic power systems
1kV
Appropriate for use in solar power applications that require 1000 volt rating. For use in grounded and ungrounded Photovoltaic power systems.
2kV
Appropriate for use in solar power applications that require 2000 volt rating. For use in grounded and ungrounded Photovoltaic power systems.

Construction
• Stranded bare and tinned copper conductors per ASTM B-3, B-8. Available in 7 or 19 stranded versions. • Chemically Cross-linked Polyethylene insulation. • Available Colors: Black, Green, White, Red. • Print on one side with a contrasting ink. An extruded stripe and other colors are available upon request.

Technical Details:

Size
600V	18	7	60	0.166	14	5.4
600V	16	7	60	0.178	18	7.97
600V	14	7	60	0.193	24	12.78
600V	12	7	60	0.212	33	20.2
600V	10	7	60	0.237	48	32.05
600V	8	7	75	0.297	76	51.05
600V	6	7	75	0.335	110	80.9
600V	4	7	75	0.384	164	128.9
600V	3	7	75	0.412	200	162.5
600V	2	7	75	0.444	246	204.9
600V	1	19	95	0.482	320	258
600V	1/0	19	95	0.563	393	326
600V	2/0	19	95	0.609	485	411
600V	3/0	19	95	0.66	601	518
600V	4/0	19	95	0.718	684	653
1000V	18	7	75	0.198	22.81	5.4
1000V	16	7	75	0.208	26.8	7.97
1000V	14	7	75	0.223	33.73	12.78
1000V	12	7	75	0.242	43.84	20.2
1000V	10	7	75	0.266	59.09	32.05
1000V	8	7	85	0.316	88.12	51.05
1000V	6	7	85	0.354	124.06	80.9
1000V	4	7	85	0.402	179.76	128.9
1000V	3	7	85	0.43	217.86	162.5
1000V	2	7	85	0.462	265.39	204.9
1000V	1	19	105	0.542	344.62	258
1000V	1/0	19	105	0.583	420.75	326
1000V	2/0	19	105	0.629	514.86	411
1000V	3/0	19	105	0.68	631.97	518
1000V	4/0	19	105	0.738	778.47	653
2000V	18	7	75	0.198	22.81	5.4
2000V	16	7	75	0.208	26.8	7.97
2000V	14	7	75	0.223	33.73	12.78
2000V	12	7	75	0.242	43.84	20.2
2000V	10	7	75	0.266	59.09	32.05
2000V	8	7	85	0.316	88.12	51.05
2000V	6	7	85	0.354	124.06	80.9
2000V	4	7	85	0.402	179.76	128.9
2000V	3	7	85	0.43	217.86	162.5
2000V	2	7	85	0.462	265.39	204.9
2000V	1	19	105	0.542	344.62	258
2000V	1/0	19	105	0.583	420.75	326
2000V	2/0	19	105	0.629	514.86	411
2000V	3/0	19	105	0.68	631.97	518
2000V	4/0	19	105	0.738	778.47	653
