Bare Aluminum Conductor Steel Reinforced ACSR Conductor

Price:	1.0~180.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ACSR

Production Capacity: 3000 kilometers

Delivery Date: 10 days for one container

Type: Bare Conductor

Jacket: Others

Brand Name: Aobest

Means of Transport: Ocean,Land,Air

Packing: wooden drum or as your requ...

Application: Overhead

Insulation Material: Others

Conductor Material: Aluminum

Voltage: Low Voltage

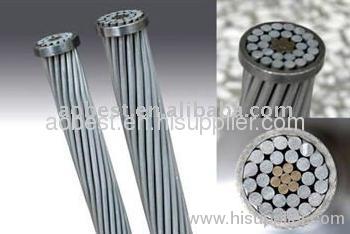

Aluminum Conductor Steel Reinforced ACSR Conductor
1.Guarantee high quality
2.CE,ISO,CQC/ABC,VDE,CCC Approval
3.Factory direct sale

Aluminum Conductor Steel Reinforced ACSR Conductor

Application:
ACSR Conductor (Aluminum Conductors Steel Reinforced) is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Aluminum Conductor Steel Reinforced ACSR Conductor

Type:

(1) all aluminium conductor (AAC)

(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)

(6)rear earth aluminimum conductor steel reinforced(ACSR/RE)

(7)aluminimum conductor aluminimum alloy reinforced(ACAR)

Relative Standard:

All Aluminum Conductor(AAC)& Aluminum Conductor Steel Reinforced(ACSR))for ASTM (AAC, ACCR, AAAC, ACSR) Generally Confirming to IS 398 (Part-I, II, IV), IEC-228
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191

Aluminum Conductor Steel Reinforced ACSR Conductor

Aluminum Section Area	Strand/wire Dia					Overall Diameter (mm)	Standard Weight (kg/km)	Calculated breaking load	Caculated Resistance at 20 degree	Code No.
Cmor AWG	Mm2	AL		St
Cmor AWG	Mm2	No.	mm	No.	mm
80000	40.54	8	2.54	1	4.24	9.32	221.70	2360	0.711	Grouse
101800	51.61	12	3.34	7	2.32	11.70	378.40	4700	0.561	Petrel
110800	56.11	12	2.44	7	2.44	12.20	411.4	5110	0.516	Minorca
134600	68.20	12	2.69	7	2.69	13.50	499.9	6160	0.426	Leghorn
159000	80.36	12	2.92	7	2.92	14.60	589.1	7240	0.360	Guinea
176900	89.41	12	3.08	7	3.08	15.40	566.5	7870	0.324	Dotterel
190800	96.50	12	3.20	7	3.20	16.00	707.6	8490	0.300	Dorking
203200	102. 80	16	2.86	19	2.48	18.10	1006.0	12860	0.282	Brahma
211300	107.00	12	2.37	7	3.31	16.90	784.8	9460	0.271	Cochin
