Basic information
voltage:lowand medium voltage cable
insulation material:xlpe
application:power station

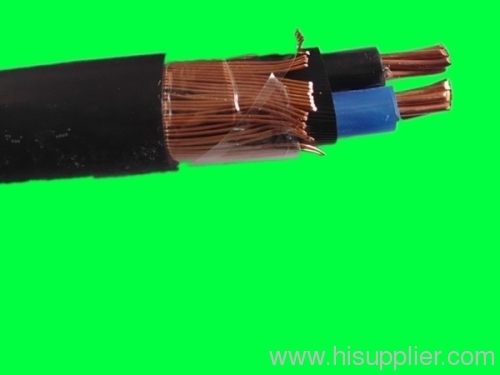

Concentric cable
Application:
Service entrance conductors
Voltage rating: 600V
Construction elements
A. Stranded bare copper conductor
B. PVC insulation
C. Concentric wire shield
D Reinforcement Polyester Tape
E. Black Jacket PVC

Other special characteristics: Design and manufacture according to customers' request

CU Conductor PVC Insulated PVC Sheathed Power Cable

1. The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose.

2. Standards: 60502IEC ISO9001

3. Product features:

1) No necessary to heat up in advance while installing above 0oC.

2) Max. Continuous normal operating Temperature: 90oC (PVC Sheathed cable).

3) Max. Permissible temperature at short circuit (5s. At longest): 250oC.

4) Permissible bending radius:

Single core: ≥ 20(d+D)± 5%.

Three-core: ≥ 15(d+D)± 5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

Detailed Description

Cross-linked polyethylene insulate power cable not only has excellent electric and mechanical properties, but also has powerful resistance against chemical corrosion, heat-aging and environmental stress. Its structure is simple and using conveniently, also can be laid with no restriction of different level. The long term operating temperature is 90, and its transmit capacitance is large.

Zhengzhou Aobest focus research and producingcopper concentriccable for powerstation, quality is first important and lowest price offered!

We have strong technical research team and strictly quality control system to ensure thecopper concentriccable for powerstation of standard quality!

Our sales team are engineers to ensure our client get full detailed reply include price and technical matters, and save your valued time!

Fiber Cable Optical Cable have been sold for more than 120countries in the world and be hornored top quality product!

How to Contact us? you can call us or email us , all emails be reply within 1hour!

Application for thecopper concentriccable for powerstation:

Itsuitable for installation in cable ducts, power plants as well as for outer laying into earth, water or for installation in distributionboards. Due to its good shaping characteristics, this copper concentriccable for powerstation can also belaid even in difficult line guideways. To avoid the influence of theouter interferences, an adherent semiconductive layer is extrudedbetween the conductor and the insulation. We recommend the use ofstripping tool for correct installation.

Other sizes beside thecopper concentriccable for powerstation:

Raw materials for thecopper concentriccable for powerstation:

We choose 99.99 purity Copper or Aluminum to produce our cables, the working life is more longer than 25years than other companies cables!
