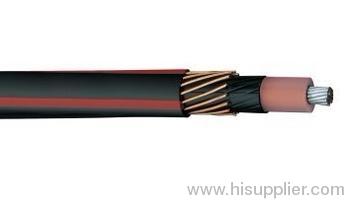

concentric cable with high quality

Price: 0.2~100.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Henan, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: concentric cable
Production Capacity: 50000 kilometers one week
Delivery Date: within 15 days
Insulation Material: XLPE
Conductor Material: Copper
insulation: xlpe
outsheath: pvc
Means of Transport: Ocean
Packing: Woodern drum
Shielding: Braid
Jacket: PVC
Brand Name: aobest
conductor: cu
voltage: Middle voltage

concentric cable with high quality
1. Superior quality and competitive price
2. Fast delivery
3. IEC/ASTM/AS/BS/DIN standard

low price concentric cable with high quality for Tanzania
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/36/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on traysor ducts,Where there is a risk of mechanical damage, armoured cables should beused.
Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
Number of cores:
1core 2core 3core 3+1core 4core 4+1core 4+2core 5core and so on.
Nominal Section Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95120 150 185 240 300 400 500 630 800
2 Some common use model
Type
Description
Application n
Cu
Al
YJV
YJLV
XLPE insulation PVC sheath power cable
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bearmechanical force outside
YJY
YJLY
XLPE insulation PE sheath power cable
YJV22
YJLV22
XLPE insulation, steel tape armor,PVC sheath power cable
To be laid underground, the cable could bear certain mechanical force, but itcouldn't bear great pulling force.
YJV23
YJLV23
XLPE insulation, steel tape armor,PE sheath power cable
YJV62
YJLV62
XLPE insulation, have no the magnetism steel tape armor,PE sheath powercable
YJV32
YJLV32
XLPE insulation, thin steel-wirearmor,PVC sheath power cable
Be applicable to the well, water inside and fall in the bad soil, the cablecans bear the equal dint outside the machine with pull the dint
.
YJV72
YJLV72
XLPE insulation, have no the magnetism thick steel-wirearmor,PVC sheathpower cable
YJV42
YJLV42
XLPE insulation, thick steel-wirearmor,PVC sheath power cable
Be applicable to the well, underwater with the bottom of sea, the cable cansbear the bigger pressure with lead to pull thedint.
U0/Um(kv)
No.of Core
1st class
0.6/1kv
1.8/3kv
3.6/6kv
6/10kv
8.7/15kv
12/20kv
18/30kv
21/35kv
2nd class
1/1kv
3/3kv
6/6kv
8.7/10kv
12/15kv
18/20kv
-
26/35kv
1 Core
Section
area(mm2)
1.5-800
25-800
25-800
25-800
35-800
50-800
50-800
50-800
2 Core
Section
Area(mm2)
1.5-185
/
/
/
/
/
/
/
3 Core
Section
area(mm2)
1.5-400
25-400
25-400
25-400
35-400
50-400
50-400
50-400
4 Core
Section
Area(mm2)
2.5-400
25-400
/
/
/
/
/
/
5 Core
Section
area(mm2)
2.5-400
25-400
/
/
/
/
/
/
Note:We can provide more info than abovedata, if needed.The above are just some examples
The specifications,cross sections andsizes not list in aboved table can be design and produce according to yourdemands
low price concentric cable with high quality for Tanzanialow price concentric cable with high quality for Tanzanialow price concentric cable with high quality for Tanzania
