11KV XLPE power cable 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2 from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

11KV XLPE power cable 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2

Price:	1.0~66.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: YJV

Production Capacity: 50000m/week

Delivery Date: 15days for one container

Type: XLPE power cable

Jacket: PVC

Brand Name: Aobest

conductor: Copper

voltage: 11KV

Means of Transport: Ocean

Packing: standard wooden drum

Application: Underground

Insulation Material: XLPE

Conductor Material: Copper

Color: red/black/blue/yellow/green

warranty: 20years

1. 95mm2 120mm2 cable
2. Exellent supplier
3. various voltage
4. OFC/CCA/AL conductor
5. oil resistance

11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2 XLPE power cable

Application
The Aobest 11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2XLPE power cable can be used in power transmitting in power station system, subdistribution and industries.

Technical info

Voltage: 11KV
Conductor: Copper, Aluminum, CCA Conductor
Insulation: XLPE

Sheathed: PVC

The ambient temperature for installation: ≥0°C

Maximum conductor temperature in normal operation:≤90°C

Max operating temperature of con. When cable short-circuited (5s maximumduration): 250°C

Permissible bending radius:

Single cable: [20(D+d) ±5%] mm

Multi cable:[15(D+d) ±5%] mm

Types of the 11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2XLPE power cable

Type		Construction	Application
Cu	Al	Construction	Application
YJV	YJLV	XLPE insulated PVC sheathed power cable	Suitable for indoor, channels, conduits. Unable to bear mechanical stress.
YJY	YJLY	XLPE insulated PE sheathed power cable
YJV22	YJLV22	XLPE insulated steel-tape armored PVC sheathed powercable	Suitable for under ground, can bear mechanical stress, but cannot endure large pulling force.
YJV23	YJLV23	XLPE insulated steel-tape armored PE sheathed powercable
YJV32	YJLV32	XLPE insulated fine steel-wire armored PVC sheathed powercable	Can be installed in vertical well, and bear great mechanical pulling force.
YJV42	YJLV42	XLPE insulated steel-wire armored PVC sheathed powercable
YJV33	YJLV33	XLPE insulated fine steel-wire armored PE sheathed powercable
YJV43	YJLV43	XLPE insulated steel-wire armored PE sheathed power cable

Aobest has done a lot of work on the design research and production of the 11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2XLPE power cable. For Aobest company, quality comes first and lowest price offered!

We have strong technical research team and strict QCl system to ensure the 11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2XLPE power cable quality!

Aobest company can also produce PVC/XLPE power cable,rubber cable,ABC cable,bare AAC/AAAC/ACSR conductor,control cable. More detail info needed, pls contact me freely.

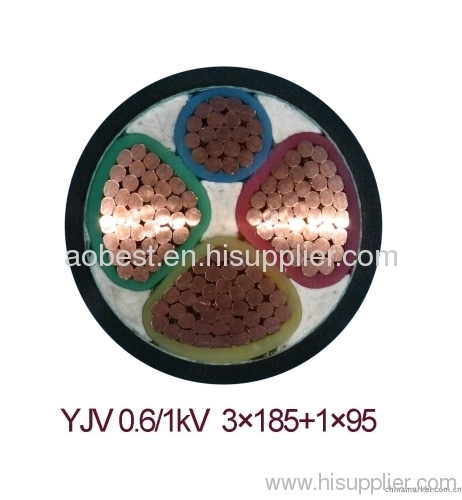

Photo of the 11KV 35mm2 50mm2 70mm2 95mm2 120mm2 240mm2XLPE power cable
