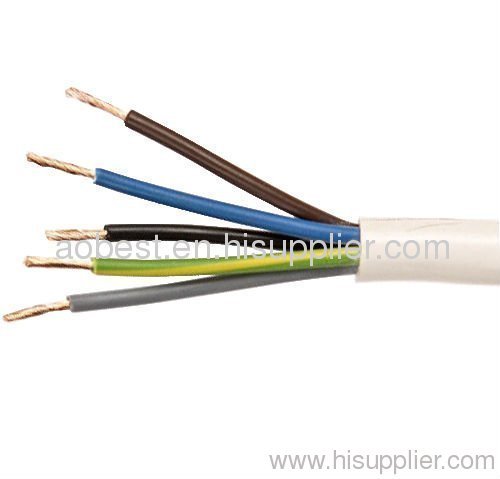

electrical wires pvc insulated from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

Product Detail

Model No.: Electrical wire

Production Capacity: 5000 kilometers

Delivery Date: 10 days for one container

Type: Electric wire

Jacket: PVC

Brand Name: Aobest

Voltage: Low Voltage

Means of Transport: Ocean,Land,Air

Packing: 100 meters per coil

Application: Construction

Insulation Material: PVC

Conductor Material: Copper

Color: Various

Size: 1.5mm2/2.5mm2/4mm2/6mm2/10m...

standard quality wires pvc insulated
1.ISO9001/SONCAP/SGS/CIS
2.Competitive price with premium quality
3.Fast delivery

standard quality wires pvc insulated

PVC wire, copper wire, building wire,450/750V.

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 BV BLV	Copper conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC01/05 BV BLV	Aluminum Conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC07 BV-90	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.	90
BVR	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required	70
227IEC10 BW	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.	70
BLW	Aluminum conductor PVC insulated PVC sheathed round wires
BWB	Copper conductor PVC insulated PVC Sheathed flat wires
BLWB	Aluminum conductor PVC insulated sheathed flat wires
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexible connector	Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required.	70
227IECC42 RVB	Copper conductor PVC insualted flat flexible connector
RVS	Copper conductor PVC insulated flexible twisting connector wire
227IEC52 RW 227IEC53 RW	Copper conductor PVC insulated PVC sheated round flexible connector(light and common type)

Comprehensive Data of BV Wire

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
0.5	1/0.80	0.6	2.4	36.0	0.015	8.1
0.75	1./0.97	0.6	2.6	24.5	0.012	10.6
1	1/1.13	0.6	2.8	18.1	0.011	13.2

Comprehensive Data table of BV BLV Type PVC insualted wire

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Type BVR 450/750V copper conductor PVC insulate flexible wire

Nominal sectional area mm2	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.6	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0
