steel type armored control cable from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

Product Detail

Model No.: kvvp2

Production Capacity: 50000 kilometers one week

Delivery Date: within 15 days

Insulation Material: XLPE

Conductor Material: Copper

type: control cable

core: multi

Means of Transport: Ocean,Land,Air,

Packing: woodern drum

Shielding: Braid

Jacket: PVC

Brand Name: aobest

voltage: medium

multi core insulated control cable
Flame-retardant copper conductor
xlpe insulated and sheath
steel tape armoured control cable

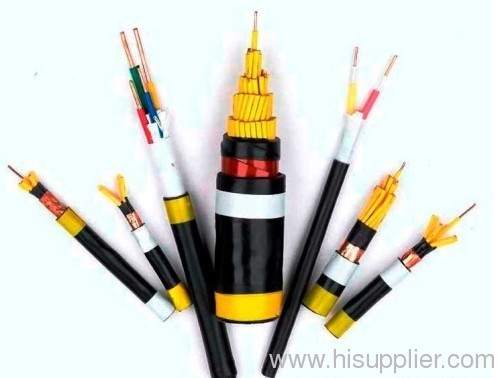

Multicore cu conductor steel type armored controlcable
Standard:GB9330 (IEC227)

Rated Voltage:300/500V 450/750V

Construction:

*copper conductor

*xlpe insulation

*PVC sheath

*WIRE BRIAD SHIELD/ COPPER TAPE WRAPPED SHIELD/

Al/Plastic WRAPPED SHIELD/ STEEL TAPE ARMOURED

APPLICATION:

*APPLIED FOR AC RATED VOLTAGE OF AND LESS THAN 450/750VCONTROL,PILOT AND PROTECTION CIRCUIT AS SIGNAL,DIRECTION

TRANSMITTING LINES OF ELECTRIC INSTRUMENTS AND AUTOMATIC CONTROLSYSTEM.

*MINED INDOOR,IN CABLE GROOVE,PIPELINE,ETC.STATIONARY PLACES

OPERATING CHARACTERISTICS:

*MAX.PERMISSION CONTINOUS OPERATING TEMPERATURE: XLPE 90,PVC70

*THE AMBIENT TEMPERATURE UNDER INSTALLATION OF CABLE SHOULD NOTBELOW 0.

*THE BENDING RADIUS OF NON-TAPE ARMORED CABLE AND BRAID SHIELDSTRUCTURE FLEXIBLE CABLE SHOULD NOT LESS THAN 6 TIMES OF THE CABLES OUTERDIAMETER.

*THE BENDING RADIUS OF TAPE ARMORED OR COPPER SHIELD CABLE SHOULDNOT LESS THAN 12 TIMES OF THE CABLES OUTER DIAMETER.

Production Range

Type		Nominal cross-section (mm²)
		0.5	0.75	1.0	1.5	2.5	4	6	10
		Number of cores
KVV	KYJV	- -		2 ~61			2 ~14		2 ~10
KVVP	KYJVP
KVVP2	KYJVP2			4 ~61			4 ~14		4 ~10
KVVP3	KYJVP3			7 ~61	4 ~61
KVV22	KYJV22
KVVR	KYJVR	4 ~61					- -
KVVRP	KYJVRP				4 ~48
Recommended number of cores:2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52and 61.

Type of Cable

Type				Detailed Descriptionof Type	Scope of utility
PVC insulated	XLPE insulated	Flame-retardant Type
PVC insulated	XLPE insulated	PVC insulated	XLPE insulated
KVV	KYJV	ZR-KVV	ZR-KYJV	PVC sheathed control cable	For laying indoors,in tunnels,or cable trench,or direct inground.
KVVP	KYJVP	ZR-KVVP	ZR-KYJVP	PVC sheathed copper wire braid shield control cable	For laying indoors,in tunnels,or cable trench, direct in ground,stationaryplaces needing shield
KVVP2	KYJVP2	ZR-KVVP2	ZR-KYJVP2	PVC sheathed copper tape wrapped shield controlcable
KVVP3	KYJVP3	ZR-KVVP3	ZR-KYJVP3	PVC sheathed Al/Plasticwrapped shield controlcable
KVV22	KYJV22	ZR-KVV22	ZR-KYJV22	PVC sheathed double steel tape armored control cable	For laying indoors,in tunnels,or direct in ground,be able to bear externalmechanical force and certain pulling force.
KVVR	KYJVR	ZR-KVVR	ZR-KYJVR	PVC sheathed flexible control cable	For laying indoors,mobile place requiring softness (andshield).
KVVRP	KYJVRP	ZR-KVVRP	KYJVRP	PVC sheathed copper wire braid shield flexible controlcable
Remarks:when flame-retardant types to be identified ,the code ZR should bechanged into ZA,AB,ZC.
