Multi-core pvc control cable from China manufacturer - Zhengzhou Aobest Electronic Technology Co., Ltd.

Price:	0.2~100.0 USD
Payment Terms:	T/T
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: control cable

Packing: woodern drum

Shielding: Braid

Jacket: PVC

Brand Name: aobest

voltage: medium

Production Capacity: 50000 kilometers one week

Delivery Date: within 15 days

Insulation Material: XLPE

Conductor Material: Copper

type: control cable

core: multi

mutil-core control cable
0.75mm2-10mm2
2 core-60 core
ISO9001-2008

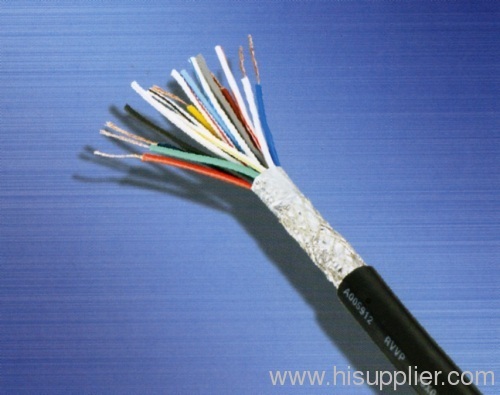

Multi-core pvc controlcable 3x0.75mm2 10x1.5mm2 48x1.5mm2
Specification:

Multicore Copper wire screen control cable

Introduction:

We are the largest manufactorand exportor of instrumentation cable inAisan

with annualproduction of 16,800km.

We are the Top 8 audited supplierof State Grid.

Sincerely hope wecan eastablish business relationship with you in the followeddays.

Application

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC.

Standard

The controlcable can be produced according to the standard GB9330-1988,IEC,DIN,BS,and thefactory can also manufacture the cables in accordance with other standards

Character and Relevant Parameters

1. Long-term service temperature of the cable conductor: 70 0C

2. Rated voltage: 450/750V

3. Cable lying temperature ≥0 0C

4. Cores: 2, 3, 4, 5, 6,7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61

5. Minimun bending radius:

Non armored ≥ out diameter of cable 6 times

Armored layer or copper tape shielded ≥ outer diameter of cable 12 times

Shielded layer soft cable ≥ outer diameter of cable 6 times

Electrical Charcter:

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches orpipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape ScreenedControl Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape ArmoredControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able towithstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible ControlCable	0.5-2.5	4-61	Installation indoors where flexibility and movability arerequired
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shieldedFlexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movabilityare required
KVVRP		1.5 2.5	4-48
KYJV	Copper Conductor,XLPE Insulated and PVC Sheathed ControlCable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches orpipes
		4 6	2-14
		10	2-10
KYJVP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	2-14
		10	2-10
KYJV22	Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,pipes orunderground Be cable to with stand stronger external mechanicalforce
		4 6	4-14
		10	4-10
KYJVP2	Copper Conductor,XLPE Insulated,Copper tape Screened,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	4-14
		10	4-10
KYJVR	Copper Conductor,XLPE Insulated,PVC Sheathed Flexible ControlCable	0.5-2.5	4-61	Installation indoors where flexibility and movability arerequired
KYJVRP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC SheathedFlexible Control Cable	0.5 0.75 1.0	4-61
		1.5 2.5	4-48	Installation indoors where flexibility shielding and movabilityare required

Production scope

Type	Rated voltage	Nominal cross area (mm2)
		0.75	1.0	1.5	2.5	4	6	10
		Number of cores
KVV KYJV KVVP KYJVP	450/750	2 ~ 61				2 ~ 14		2 ~10
KVVP2 KYJVP2		4 ~ 61				4 ~ 14		4 ~10
KVV22 KYJV22		7 ~ 61			4 ~ 61	4 ~ 14		4 ~10
KVV32 KYJV32		19 ~ 61		7 ~ 61		4 ~ 14		4 ~ 10
KVVR KYJVR		4 ~ 61				-		-
KVVRP		4 ~ 61		4 ~ 61		-		-

1. Preferred number of cores: 2 3 4 5 7 8 10 12 14 16 19 24 27 30 37 44 48 52 61

2. The special type of fire-retardant, flame-resisting, low-halogen, low-fume and non-halogen as well as acid and alkali proof for these cables can be supplied upon request.
