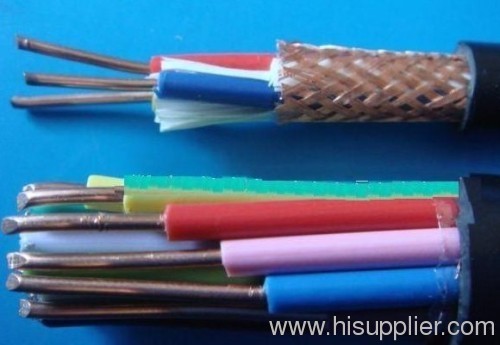

PVC Insulated and sheathed Flexible Control cable

Price:	0.2~100.0 USD
Payment Terms:	T/T,L/C,WU,
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: kvvp

Production Capacity: 50000 kilometers one week

Delivery Date: within 15 days

Insulation Material: PVC

Conductor Material: Copper

type: control cable

standard: IEC

Means of Transport: Ocean,Land,Air,

Packing: woodern drum

Shielding: Braid

Jacket: PVC

Brand Name: aobest

voltage: medium

1.control cable
2.Iso -9001 quality guarantee
3.Manufacture direct sales,competitive price
4.Small quantity accepted

Copper Coductor PVCInsulated and sheathed Flexible Control Cable

1.Standard

The control cable can be produced according to the standardGB9330-1988,IEC,DIN,BS,and the factory can also manufacture the cables inaccordance with other standards.

2.Scope of Application

The control cable are suitable for the wiring of electricalcontrolling equipments and instrument,monitoring and controlling returncircuit,electrical protection and measurement in power distribution unit underthe circumstance that the rated voltage is up to 450/750V AC.

3.Type& Specification

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches orpipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape ScreenedControl Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape ArmoredControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able towithstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible ControlCable	0.5-2.5	4-61	Installation indoors where flexibility and movability arerequired
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shieldedFlexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movabilityare required
KVVRP		1.5 2.5	4-48
KYJV	Copper Conductor,XLPE Insulated and PVC Sheathed ControlCable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches orpipes
		4 6	2-14
		10	2-10
KYJVP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	2-14
		10	2-10
KYJV22	Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,pipes orunderground Be cable to with stand stronger external mechanicalforce
		4 6	4-14
		10	4-10
KYJVP2	Copper Conductor,XLPE Insulated,Copper tape Screened,PVC SheathedControl Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches or pipes whereshielding is required
		4 6	4-14
		10	4-10
KYJVR	Copper Conductor,XLPE Insulated,PVC Sheathed Flexible ControlCable	0.5-2.5	4-61	Installation indoors where flexibility and movability arerequired
KYJVRP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC SheathedFlexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movabilityare required
KYJVRP		1.5 2.5	4-48

4.Service Conditions

(1) The long-time working temperature of conductor of PVCinsulated cable is 70^oC

The long-time working temperature of conductor of XLPE insulatedcable is 90^oC

(2) The temperature for laying the cables can not be lower than0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameter ofthe cable);armoured or copper-tape screened cable:r≥12D;shielded flexiblecable:r≥6D
