multicore copper pvc sheathed control cable

Price:	0.2~100.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: control cable

Production Capacity: 50000 kilometers one week

Delivery Date: within 15 days

Insulation Material: XLPE

Conductor Material: Copper

type: control cable

core: multi

Means of Transport: Ocean,Land,Air

Packing: woodern drum

Shielding: Braid

Jacket: PVC

Brand Name: aobest

voltage: medium

insulation: xlpe

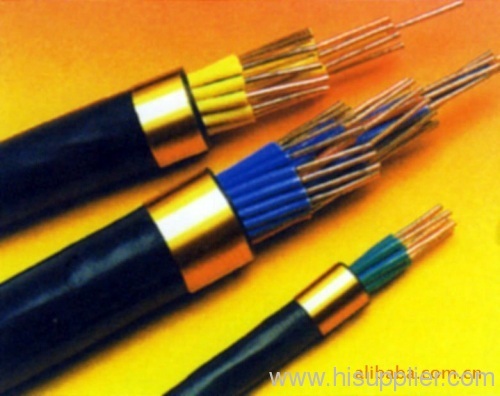

multicore copper pvc sheathed control cable
1.Multicore flexible control cable
2. high quality competitive price
3.fast delivery

Name

multicore copper pvcsheathed controlcable

Mode

KVV
Scope of Application

The control cable are suitable for the wiring of electricalcontrolling equipments and instrument,monitoring and controlling returncircuit,electrical protection and measurement in power distribution unit underthe circumstance that the rated voltage is up to 450/750V AC.

Feature

Max. permissible continuous working temperatureof conductor: PVC insulation: 70°C, XLPE insulation: 90°C

Laying ambient temperature for cables shouldnot less than 20 °C

Permissible bending redius of thecable:

For cables unarmoured: bending radius shouldnot less than 8D;

For cables armoured or copper tape screened:bending radius shoul not less than 12D;

For screened flexible cable: bending radiusshould not less than 8D.

(Remarks: D--theactual outer diameter of the cable; d--the actual outer diameter of theconductor)

Model&Name

KVV	Copper Conductor PVC Insulated PVC Sheathed Control Cable
KVVP	Copper Conductor PVC Insulated PVC Sheathed Copper Wire Braiding ScreenedControl cable
KVVP2	Copper Conductor PVC Insulated PVC Sheathed Copper Tape Screened ControlCable
KVV22	Copper Conductor PVC Insulated PVC Sheathed Steel Tape Armoured ControlCable
KVVP2-22	Copper Conductor PVC Insulated PVC Sheathed Copper Tape Screened Steel TapeArmoured Control Cable
KVV32	Copper Conductor PVC Insulated PVC Sheathed Thin Steel Wire Armoured ControlCable
KVVR	Copper Conductor PVC Insulated PVC Sheathed Flexible Control Cable
KVVRP	Copper Conductor PVC Insulated PVC Sheathed Copper Wire Braiding ScreenedFlexible Control Cable
KYJV	Copper Conductor XLPE Insulated PVC Sheathed Control Cable
KYJVP	Copper Conductor XLPE Insulated PVC Sheathed Copper Wire Braiding ScreenedControl cable
KYJVP2	Copper Conductor XLPE Insulated PVC Sheathed Copper Tape Screened ControlCable
KYJV22	Copper Conductor XLPE Insulated PVC Sheathed Steel Tape Armoured ControlCable
KYJVP2-22	Copper Conductor XLPE Insulated PVC Sheathed Copper Tape Screened Steel TapeArmoured Control Cable
KYJV32	Copper Conductor XLPE Insulated PVC Sheathed Thin Steel Wire ArmouredControl Cable
KYJY	Copper Conductor XLPE Insulated PO Sheathed Control Cable
KYJYP	Copper Conductor XLPE Insulated PO Sheathed Copper Wire Braiding ScreenedControl cable
KYJYP2	Copper Conductor XLPE Insulated PO Sheathed Copper Tape Screened ControlCable
KYJYP3	Copper Conductor XLPE Insulated PO Sheathed Aluminum Plastic Composite TapeScreened Control Cable
KYJY23	Copper Conductor XLPE Insulated PO Sheathed Steel Tape Armoured ControlCable
KYJYP2-23	Copper Conductor XLPE Insulated PO Sheathed Copper Tape Screened Steel TapeArmoured Control Cable
KYJY33	Copper Conductor XLPE Insulated PO Sheathed Thin Steel Wire Armoured ControlCable
